Furnace Door Hoses

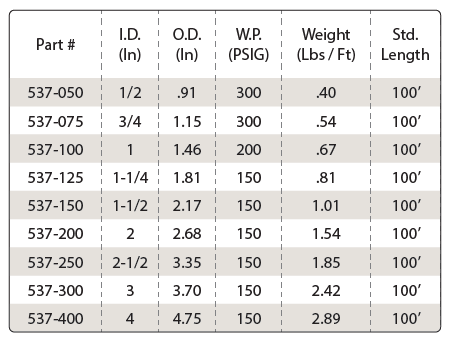

Furnace Door Coolant Hose Series 537

Used to convey cooling water to furnace doors in steel mills, glass plants, foundries, or where the hose is subjected to high temperatures, open flame, and splashes of white-hot molten metals or glass. This coolant hose has a through-the-wall electrical resistance of 1 x 1010 Ω.

Construction:
Tube: White EPDM (Non-Conductive)
Reinforcement: Multiple textile plies
Cover: Heat resistant EPDM, with nonconductive white fiberglass
Temperature Rating:
Tube: -40°F to +300°F
Cover: -40°F to +1000°F
Length: 100 feet

Furnace Door Coolant Hose Series 538

Non-conductive furnace door coolant hose is designed to convey cooling water to furnace doors in steel mills, glass plants, foundries, or where the hose is subjected to high temperatures, open flame, and splashes of white-hot molten metals or glass.
Hose has a through-the-wall electrical resistance of 1 x 1010 Ω.

Construction:
Tube: White EPDM (Non-Conductive)
Reinforcement: Multiple textile plies
Cover: Heat resistant EPDM, with non-conductive resin-coated dust-free fiberglass cover
Temperature Rating:
Tube: -40°F to +300°F
Cover: -40°F to +1000°F
Length: 100 feet
